Single Arm ICU Pendant System | PLDT Medical Pendant

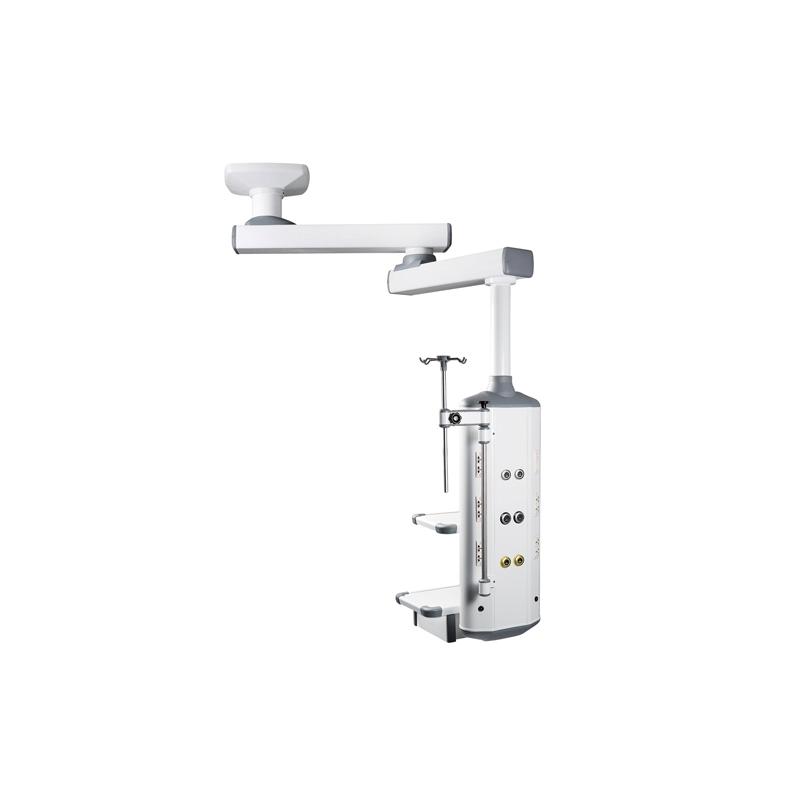

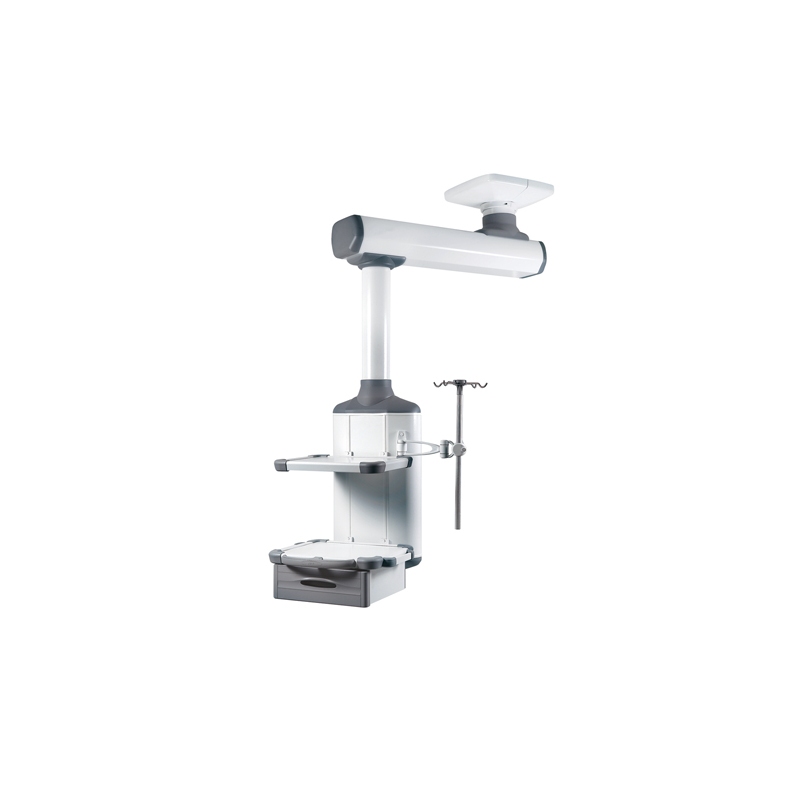

The PLDT Single Arm Medical Pendant is designed for intensive care units (ICU), operating rooms, and emergency departments, providing an integrated solution for medical gas supply, power distribution, and equipment management.
The pendant adopts a single-arm rotating structure, allowing flexible positioning around the patient bed. The terminal box can rotate up to 340°, enabling medical staff to easily access medical equipment during treatment.
The horizontal arm range is 700–1100 mm, which can be customized according to hospital requirements. The arm is made of high-strength aluminum alloy, ensuring stability and durability.
The pendant is equipped with multi-layer instrument platforms, infusion pole holders, and multiple power sockets to support medical devices such as monitors, ventilators, and infusion pumps.
With a maximum load capacity of 220 kg, the PLDT pendant provides stable support for ICU equipment while maintaining an organized medical workspace.
Key Features
- Single arm rotating medical pendant
- Terminal box rotation up to 340°
- Adjustable horizontal arm range 700–1100 mm
- High-strength aluminum alloy structure
- Two-layer adjustable instrument platforms
- Medical gas outlets and power sockets customizable
- Anti-collision silicone corner protection
- Easy installation and flexible equipment management
- Maximum load capacity 220 kg
Technical Specifications
| |
|---|
| |
| Single Arm Medical Pendant |
| |
| |
| |
| 2 layers (adjustable height) |
| |
| High-strength aluminum alloy |
