plqj-single-arm-endoscopic-pendant
Medical Pendant

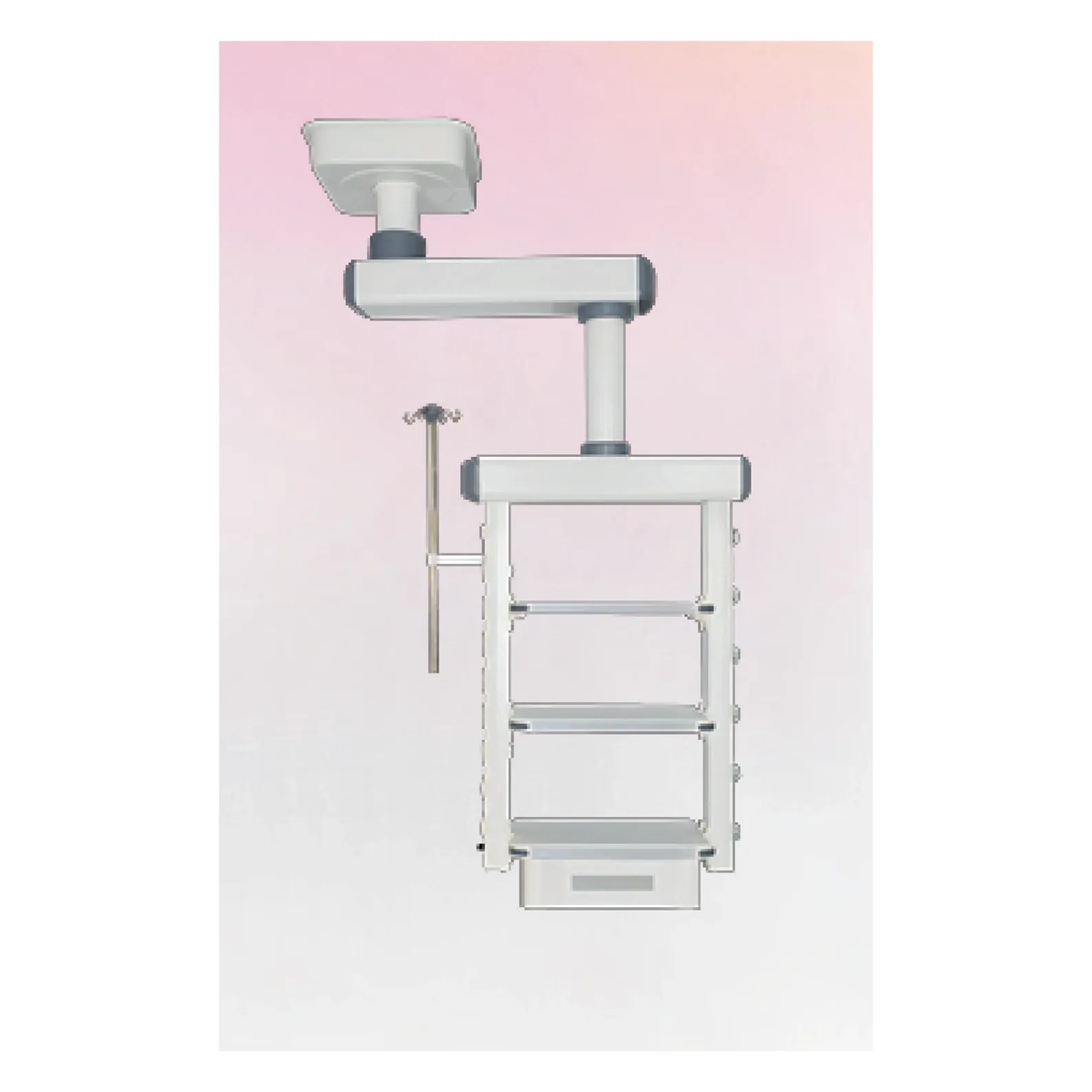

PLQJ Single Arm Endoscopic Pendant

Single-arm endoscopic pendant with independent or simultaneous arm and terminal-box rotation, three adjustable platforms, ≥220 kg load capacity, and customizable gas/electrical connections.

PLQJ Single Arm Endoscopic Pendant
Key Specifications
  1. Working power supply: AC110V or 220V, 50Hz.
  1. Horizontal arm range of motion (radius): 700–1100 mm (customizable); horizontal arm thickness ≥10 mm.
  1. Horizontal rotation angle: 0–340°; the horizontal arm and terminal box can rotate separately or simultaneously.
  1. Net load: ≥220 kg.
  1. Instrument platform: 3 layers (adjustable height), 560 × 550 mm, silicone-gel corner protection and anti-collision design.
  1. Gas interface configuration: German, European, British and other standards are customizable. Interfaces use different colors and shapes for anti-wrong connection; service life exceeds 20,000 plug/unplug cycles; secondary sealing supports on, off and unplugged states and can be repaired with gas.
  1. Accessories: 8 × 10A power sockets; 1 network interface; 2 grounding terminals; 1 drawer; 1 stainless-steel adjustable infusion pole stand with 4 infusion-bottle hooks.
