Medical Pendant

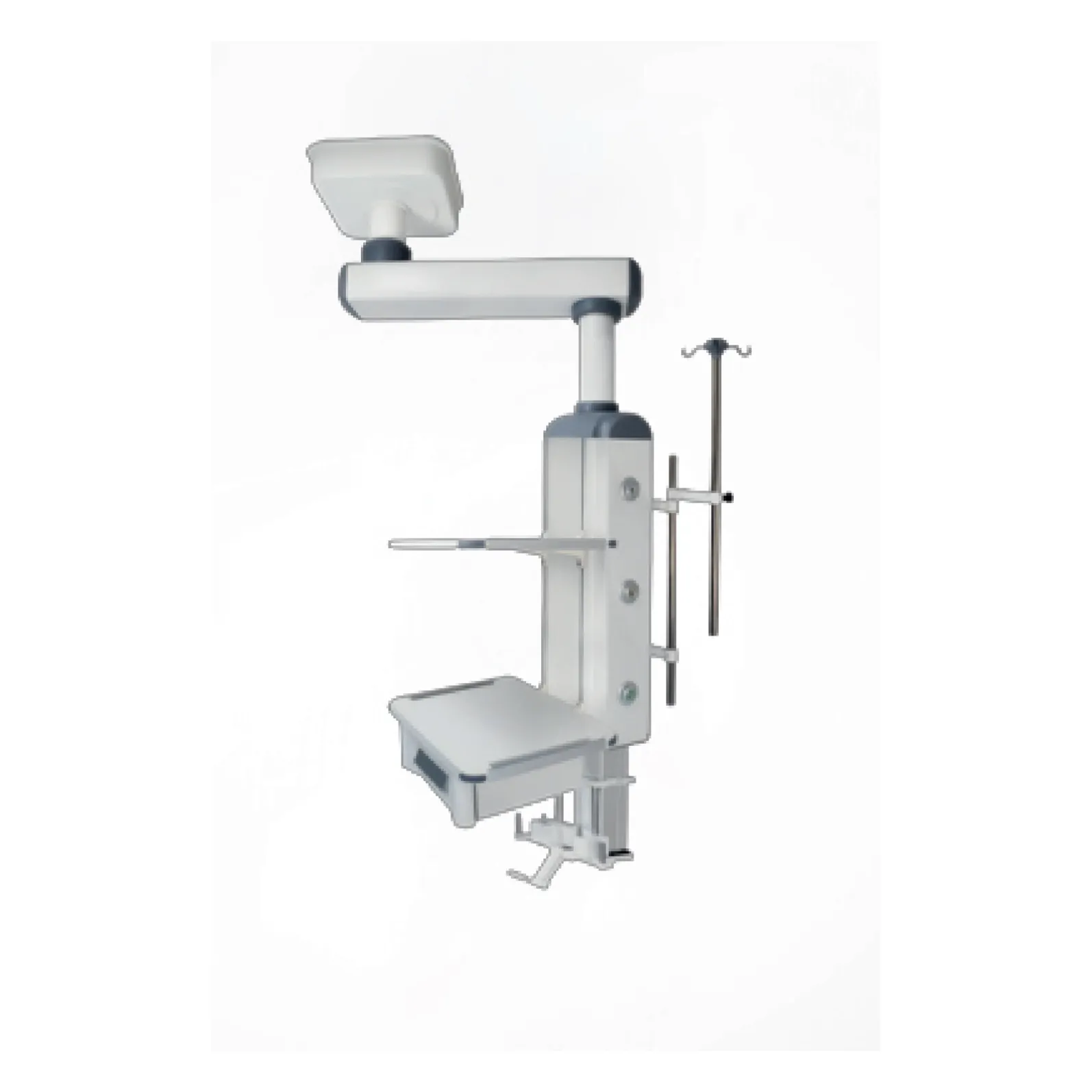

PLEMT Electrical Anesthesia Pendant

Electrical anesthesia pendant with a 700–1100 mm arm, ≥220 kg net load, 300 mm electric anesthesia-machine lift, two adjustable platforms, and customizable gas/electrical connections.

PLEMT Electrical Anesthesia Pendant
Key Specifications
  1. Working power supply: AC110V or 220V, 50Hz.
  1. Cross-arm range of motion (radius): 700–1100 mm (customizable); cross-arm thickness ≥10 mm.
  1. Terminal box rotation angle: 0–340°.
  1. Net load: ≥220 kg.
  1. Anesthesia-machine lifting bracket with 300 mm electric lifting stroke.
  1. Instrument platform: 2 layers (adjustable height), 600 × 450 mm, silicone-gel rounded-corner anti-collision design.
  1. Gas interface configuration: German, European, British and other standards are customizable. Interfaces use different colors and shapes for anti-wrong connection; service life exceeds 20,000 plug/unplug cycles; secondary sealing supports on, off and unplugged states and can be repaired with gas.
  1. Accessories: 10 × 10A multi-function power sockets; 1 network interface; 2 grounding terminals; 1 stainless-steel adjustable infusion pole holder; 1 drawer.
