Medical Pendant

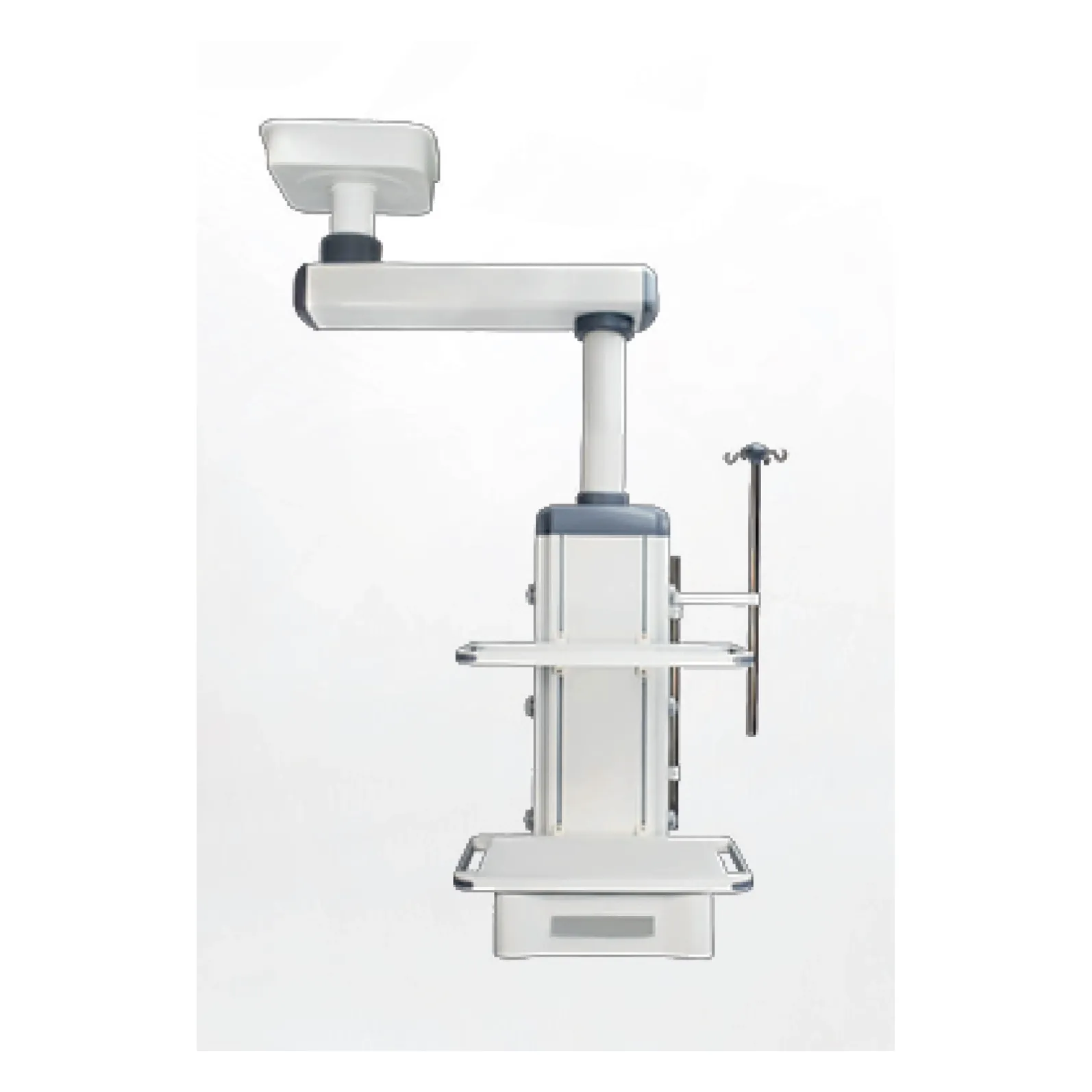

PLDT Single Arm Pendant
Single-arm medical pendant with a 700–1100 mm customizable arm, ≥220 kg net load, two adjustable platforms, configurable medical gas interfaces, and integrated power/data connections.
PLDT Single Arm Pendant
Key Specifications
- Working power supply: AC110V or 220V, 50Hz.
- Horizontal arm range of motion (radius): 700–1100 mm (customizable); horizontal arm thickness ≥10 mm.
- Terminal box rotation angle: 0–340°.
- Net load: ≥220 kg.
- Instrument platform: 2 layers (adjustable height), 600 × 450 mm, silicone-gel corner protection and anti-collision design.
- Gas interface configuration: German, European, British and other standards are customizable. Interfaces use different colors and shapes for anti-wrong connection; service life exceeds 20,000 plug/unplug cycles; secondary sealing supports on, off and unplugged states and can be repaired with gas.
- Accessories: 10 × 10A multi-function power sockets; 1 network interface; 2 grounding terminals; 1 drawer; 1 stainless-steel adjustable infusion pole holder.
