Mobile C-arm X-ray System for Surgery
The INC Series Mobile C-arm Digital Fluoroscopy System is designed for surgical imaging and real-time fluoroscopy in hospitals and operating rooms. The system provides high-definition images with low radiation dose, helping doctors perform accurate diagnosis and surgical guidance.
Equipped with a high-frequency generator and high-performance flat panel detector, the system delivers excellent image quality and fast image processing. The 210 × 210 mm amorphous silicon detector with CsI technology ensures clear imaging and high sensitivity even at low radiation doses.

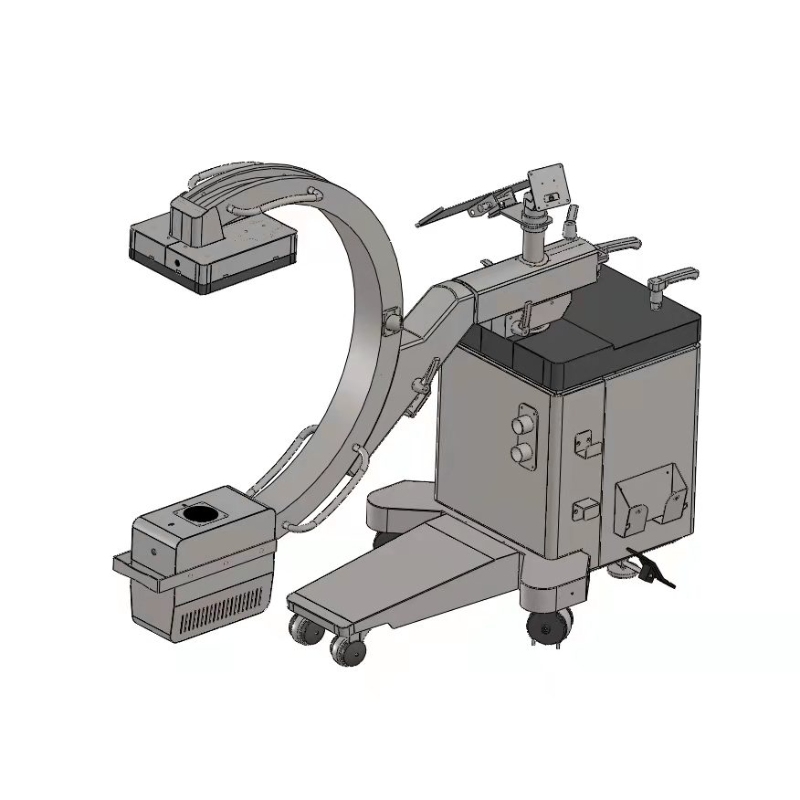

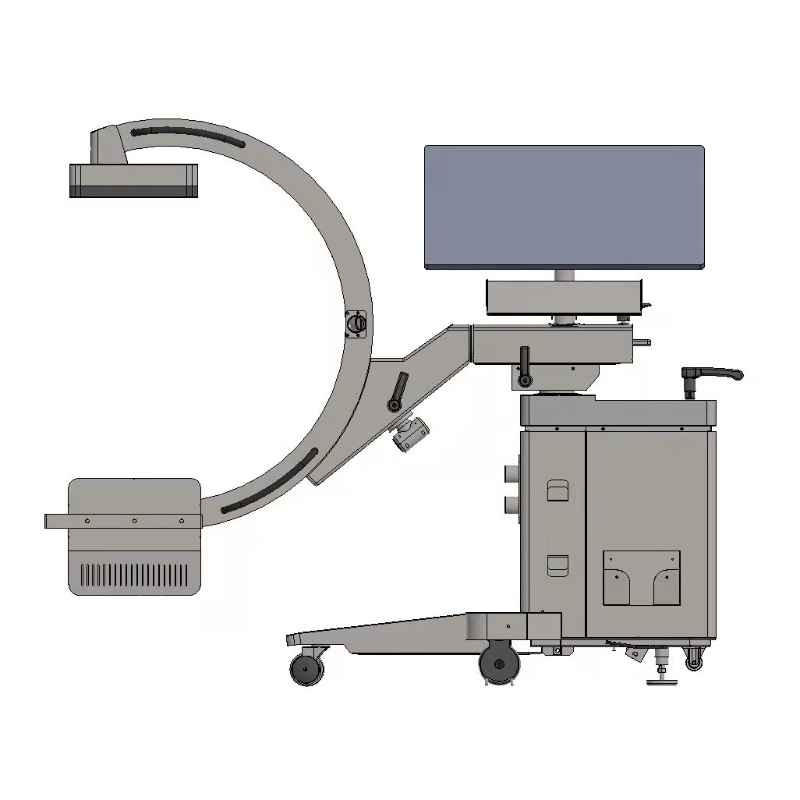

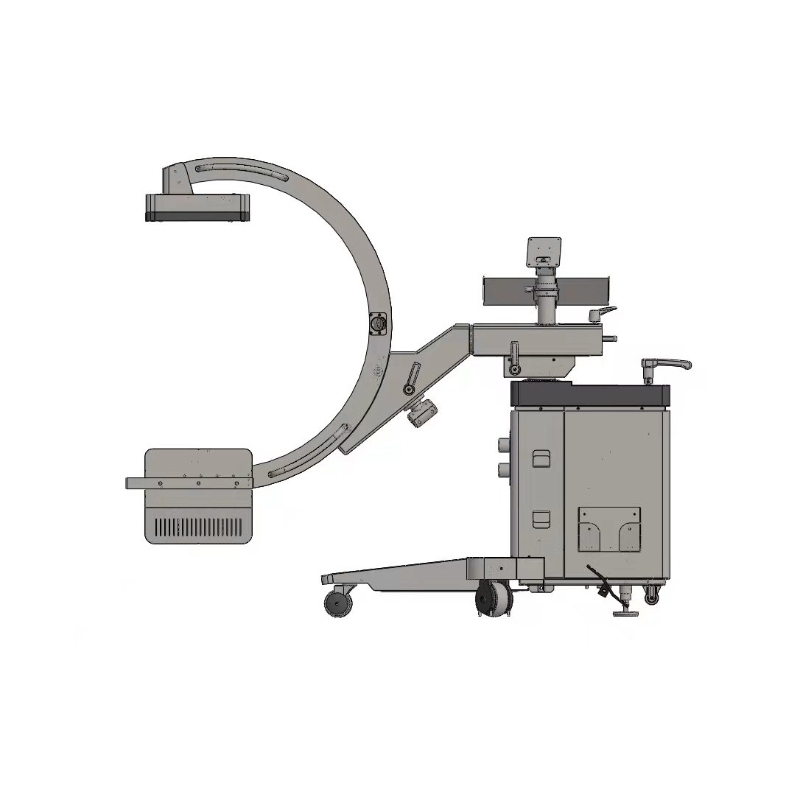

The mobile C-arm offers flexible positioning and a large open design, providing 820 mm free space for surgical procedures. Its compact structure and user-friendly interface allow easy operation during orthopedic and interventional surgeries.
The system supports real-time fluoroscopy at up to 30 frames per second, making it suitable for a wide range of clinical applications such as orthopedic surgery, neurosurgery, vascular intervention, and pain management.
With advanced imaging technology, the INC Series C-arm provides surgeons with accurate, fast, and reliable imaging support during complex surgical procedures.
Key Features
- Mobile C-arm digital fluoroscopy system
- High-frequency generator for stable imaging
- Powerful generator options 5kW / 15kW
- 210 × 210 mm flat panel detector
- High-resolution amorphous silicon detector
- Real-time fluoroscopy up to 30 fps
- Large 820 mm C-arm opening
- Rotating anode X-ray tube for stable performance
- 34-inch HD medical monitor for real-time imaging
- PACS connectivity with DICOM 3.0
- Remote control, hand switch and foot switch operation
- Laser localizer for accurate positioning
Technical Specifications
Clinical Applications
The system is widely used in various surgical departments, including:
These applications require real-time fluoroscopic imaging to guide surgical procedures safely and accurately.
